1″ — 1 1/2″ Three Segment Heavy Duty Clamp
|
Size |
Service Pressure Rating at 70°F |
Service Pressure Rating at 250°F |

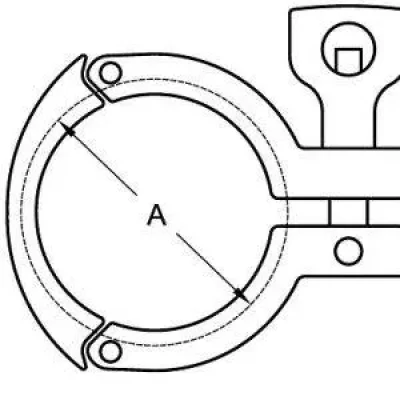

Dimension (A) |
|
1″ – 1 1/2″ |
600 |
300 |
2.122 |
|
2″ |
550 |
275 |
2.654 |
|
2-1/2″ |
450 |
225 |
3.185 |
|
3″ |
350 |
175 |
3.717 |
|
4″ |
300 |
150 |
4.820
|
|
Sanitary Size |
OD of Flange End |
ID of Tube |
OD of Tube |
|
1/2″ |
0.992 |
0.370 |
0.500 |
|
3/4″ |
0.992 |
0.620 |
0.750 |
|
1″ |
1.984 |
0.870 |
1.000 |
|
1 1/2″ |
1.984 |
1.370 |
1.500 |
|
2″ |
2.516 |
1.870 |
2.000 |
|
2 1/2″ |
3.047 |
2.370 |
2.500 |
|
3″ |
3.579 |
2.870 |
3.000 |
|
4″ |
4.682 |
3.834 |
4.000 |
|
6″ |
6.562 |
5.782 |
6.000 |
|
8″ |
8.602 |
7.782 |
8.000 |
|
10″ |
10.570 |
9.782 |
10.000 |
|
12″ |
12.570 |
11.760 |
12.000 |
