· Single Pin Squeeze Clamp
· All clamps are T304 Stainless Steel.
· Pressure ratings assume wing nut tightened to 25 in/lb of torque.
Description:
1″ – 1 1/2″ Squeeze Clamp

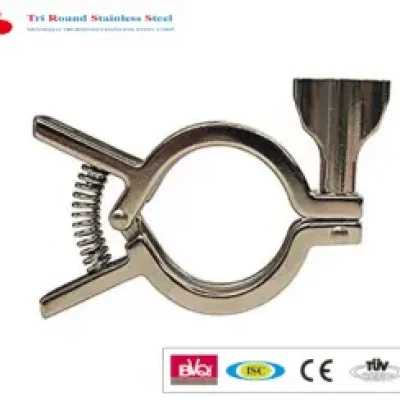

Single pin squeeze clamp is made of 304 stainless steel and allows for easy disassembly. It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.
|

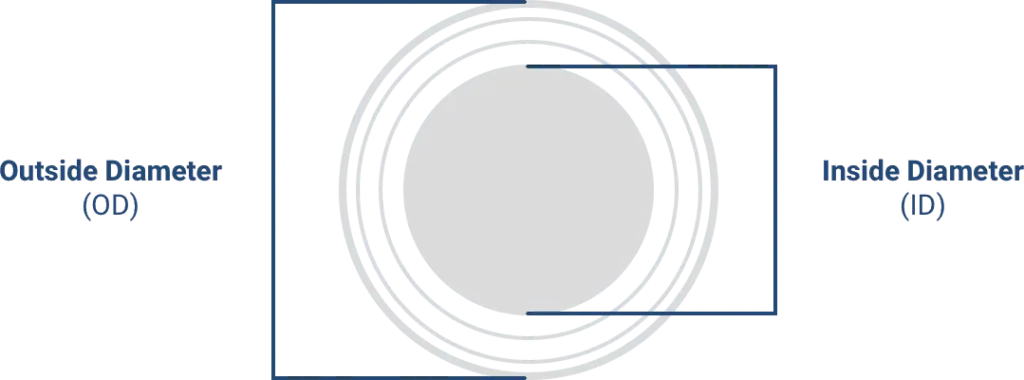

Sanitary Size |
OD of Flange End |
ID of Tube |
OD of Tube |
|
1/2″ |
0.992 |
0.370 |
0.500 |
|
3/4″ |
0.992 |
0.620 |
0.750 |
|
1″ |
1.984 |
0.870 |
1.000 |
|
1 1/2″ |
1.984 |
1.370 |
1.500 |
|
2″ |
2.516 |
1.870 |
2.000 |
|
2 1/2″ |
3.047 |
2.370 |
2.500 |
|
3″ |
3.579 |
2.870 |
3.000 |
|
4″ |
4.682 |
3.834 |
4.000 |
|
6″ |
6.562 |
5.782 |
6.000 |
|
8″ |
8.602 |
7.782 |
8.000 |
|
10″ |
10.570 |
9.782 |
10.000 |
|
12″ |
12.570 |
11.760 |
12.000 |
