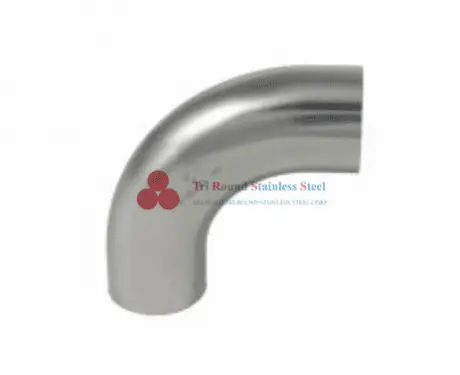

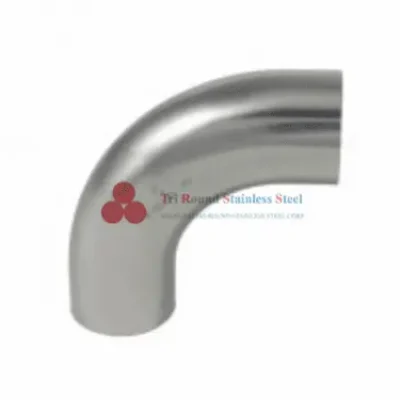

Sanitary Welded Extension
Our tube fittings (Elbow 45D, Elbow 90D, Reducer, Tee, Union, Clamps) can be used for sanitary, pharmaceutical, vacuum, and etc. We can offer various standard of unions and different rubber sealing elements and gaskets. We can make according to requirement of customers and satisfy GMP, FDA standards.
Standard: 3A,BSSMS, DIN, BPE,ISO
Connection: butted welding, clamp and thread
Material: AISI 304, 304L ,316, 316L
Surface: ID/OD polishing; Only ID polishing; Only OD polishing or None polishing
Roughness: 400 Grits, 320 Grits, 240 Grits, 180 Grits
|
BPE STANDARD |
SMS STANDARD |
IDF STANDARD |
3A SANITARY STANDARD |
DIN 11850 |
||||||||||
|
SIZE |
O.D |
T |
SIZE |
O.D |
T |
SIZE |
O.D |
T |
SIZE |
O.D |
T |
SIZE |
O.D |
T |
| 1/4” | 6.35 | 0.89 | ||||||||||||
| 3/8” | 9.53 | 0.89 | ||||||||||||
| 1/2” | 12.7 | 1.65 | ||||||||||||
| 1.0 | 25.4 | 1.65 | 25 | 25 | 1.25 | 1.0” | 25.4 | 1.2 | 25.4 | 1.65 | 25 | 28 | 1 | |
| 1.5 | ||||||||||||||
| 32 | 32 | 1.25 | 1.25 | 31.8 | 1.2 | 32 | 34 | 1 | ||||||
| 1.5 | ||||||||||||||
| 1.5” | 38.1 | 1.65 | 38 | 38 | 1.25 | 1.5” | 38.1 | 1.2 | 38.1 | 1.65 | 40 | 40 | 1 | |
| 1.5 | ||||||||||||||
| 2.0 | 50.8 | 1.65 | 51 | 51 | 1.25 | 2.0” | 50.8 | 1.5 | 50.8 | 1.65 | 50 | 52 | 1 | |
| 1.5 | ||||||||||||||
| 2.5” | 63.5 | 1.65 | 63.5 | 63.5 | 1.6 | 2.5” | 63.55 | 2 | 63.5 | 1.65 | 65 | 70 | 2 | |
| 3.0” | 76.2 | 1.65 | 76 | 76.2 | 2 | 3.0” | 76.2 | 2 | 76.2 | 1.65 | 80 | 85 | 2 | |
| 4.0” | 101.6 | 2.11 | 104 | 104 | 2 | 4.0” | 101.6 | 2 | 101.6 | 1.65 | 100 | 104 | 2 | |
| 2.11 | ||||||||||||||
(Other surface finish can be ordered)
3A
BPE
BS
DIN
ISO
SMS
