Casted or manufactured from pipes. Working pressure 150LBS
size: 1/8”~4” (DN6~DN100)
Connection : female parallel thread and male taper thread.
Material : 201, 304 & 316
Thread : ISO7/1(BSP/DIN2999)/ NPT /ISO228
Port: Shanghai
Payment Terms: L/C,D/A,D/P,T/T
Casted or manufactured from pipes. Working pressure 150LBS
size: 1/8”~4” (DN6~DN100)
Connection : female parallel thread and male taper thread.
Material : 201, 304 & 316
Thread : ISO7/1(BSP/DIN2999)/ NPT /ISO228

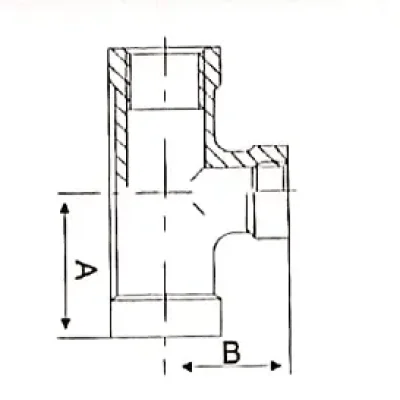

| ITEMSIZE | 1/8” | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” |
| A | 15.30 | 17.30 | 21.80 | 24.50 | 29.00 | 34.30 | 39.30 | 46.00 | 53.50 | 65.80 | 74.50 | |
| B | 15.80 | 18.80 | 21.60 | 28.00 | 31.00 | 36.30 | 41.80 | 48.50 | 61.00 | 68.80 | 85.50 |

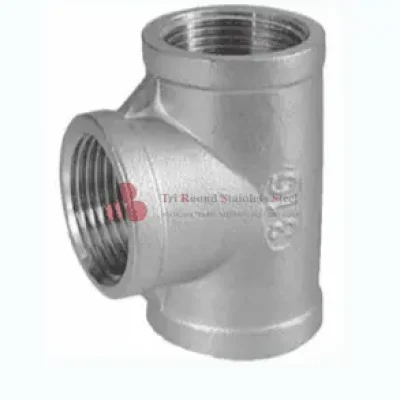

Reducing Tee(RTB)
