Casted or manufactured from pipes. Working pressure 150LBS.
Size: 1/8”~4” (DN6~DN100)
Connection: female parallel thread and male taper thread.
Material: 201, 304 & 316
Thread: ISO7/1(BSP/DIN2999) / NPT / ISO228

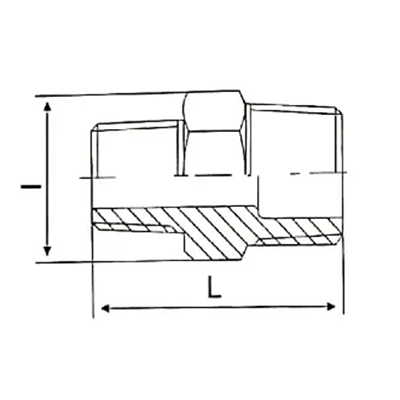

| ITEMSIZE | 1/8” | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” |
| I | 16.50 | 20.40 | 25.40 | 31.60 | 37.00 | 46.30 | 53.00 | 66.40 | 80.00 | 92.70 | 120.00 | |
| L | 23.70 | 26.00 | 30.00 | 34.50 | 39.00 | 44.30 | 48.00 | 53.50 | 61.50 | 68.00 | 74.00 |
