Double Pin Heavy Duty Clamp
All clamps are T304 Stainless Steel.
Pressure ratings assume wing nut tightened to 25 in/lb of torque.
The double pin heavy duty clamp with a wingnut is made from 304 stainless steel alloy. It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection. Do not over tighten wing-nut as this may damage product.
|
Size |
Service Pressure Rating at 70°F |
Service Pressure Rating at 250°F |

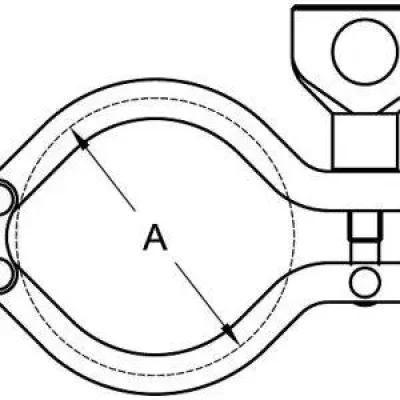

Dimension (A) |
|
1/2″ – 3/4″ |
1,500 |
1,200 |
1.125 |
|
1″ – 1 1/2″ |
500 |
300 |
2.122 |
|
2″ |
450 |
250 |
2.654 |
|
2-1/2″ |
400 |
200 |
3.185 |
|
3″ |
350 |
175 |
3.717 |
|
4″ |
300 |
150 |
4.820 |
|
6″ |
150 |
75 |
6.695 |
|
8″ |
100 |
50 |
8.695 |
|
10″ |
75 |
40 |
10.695 |
TRI-CLAMP FITTINGS AND GASKET SIZING GUIDE
