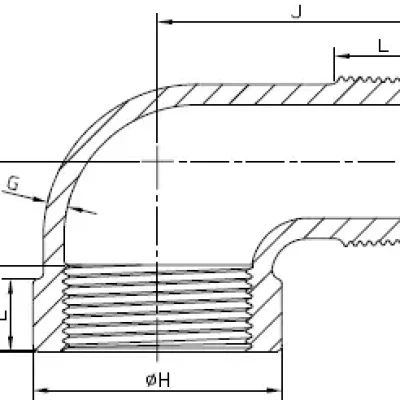

90 Degree Street Elbow

Port: Shanghai

Payment Terms: L/C,D/A,D/P,T/T

SIZE	1/8″		1/4″		3/8″		1/2″		3/4″		1″		1-1/4″		1-1/2″		2″		2-1/2″		3″		4″
SIZE	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
A	20.57	0.81	20.57	0.81	23.62	0.93	28.45	1.12	33.27	1.31	38.1	1.5	44.45	1.75	49.02	1.93	57.15	2.25	68.07	2.68	77.72	3.06	96.77	3.81
B (Min.)	6.35	0.25	8.13	0.32	9.14	0.36	10.92	0.43	12.7	0.5	14.73	0.58	17.02	0.67	17.78	0.7	19.05	0.75	23.37	0.92	24.89	0.98	27.43	1.08
E (Min.)	5.08	0.2	5.08	0.2	5.33	0.21	6.35	0.25	6.86	0.27	7.62	0.3	8.64	0.34	9.4	0.87	10.67	0.42	12.19	0.48	13.97	0.55	16.76	0.66
G	2.29	0.09	2.29	0.09	2.54	0.1	2.54	0.1	3.05	0.12	3.3	0.13	3.56	0.14	3.81	0.15	4.32	0.17	5.33	0.21	5.84	0.23	6.6	0.26
H (Min.)	19.05	0.75	21.34	0.84	25.65	1.01	30.48	1.2	37.08	1.46	44.96	1.77	54.61	2.15	61.72	2.43	75.18	2.96	84.07	3.31	101.6	4	128.52	5.06
J	26.92	1.06	29.97	1.18	36.32	1.43	41.15	1.62	47.5	1.87	53.85	2.12	63.5	2.5	69.85	2.75	82.55	3.25	98.3	3.87	114.3	4.5	144.27	5.68
L (Min.)	6.6	0.26	10.16	0.4	10.41	0.41	13.46	0.53	13.97	0.55	17.27	0.68	18.03	0.71	18.29	0.72	19.3	0.76	28.96	1.14	30.48	1.2	33.02	1.3
N (Max.)	5.08	0.2	6.6	0.26	9.4	0.37	12.95	0.51	17.53	0.69	23.11	0.91	30.23	1.19	35.31	1.39	45.47	1.79	55.88	2.2	70.61	2.78	93.98	3.7
Weight	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg	lb
Weight	0.028	0.062	0.037	0.082	0.058	0.128	0.099	0.218	0.163	0.359	0.285	0.628	0.417	0.919	0.573	1.263	0.947	2.088
